Removal

BLOWER MOTOR - LHD





1. Remove the lower instrument panel cover (2) from the instrument panel (1).Instrument Panel - Removal.




2. Disconnect the blower motor electrical connector (1) from the relief in the blower motor door.




3. Slide the blower motor door catch mounts (1) to the inside.
4. Swing the blower motor door down.

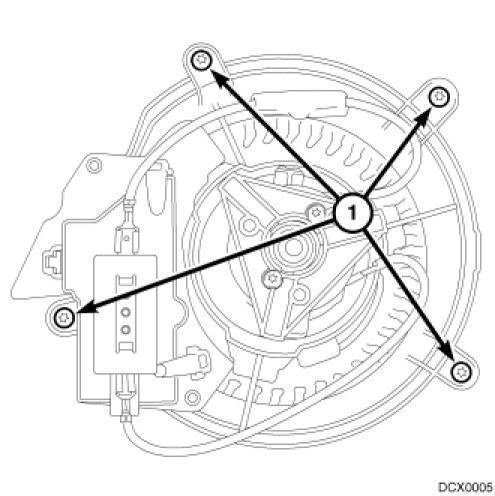

5. Remove the screws (1) attaching the blower motor to the heater housing.
6. Remove the blower motor and squirrel cage as an assembly.
