Removal

REMOVAL





1. Remove the center console. Center Console - Removal.

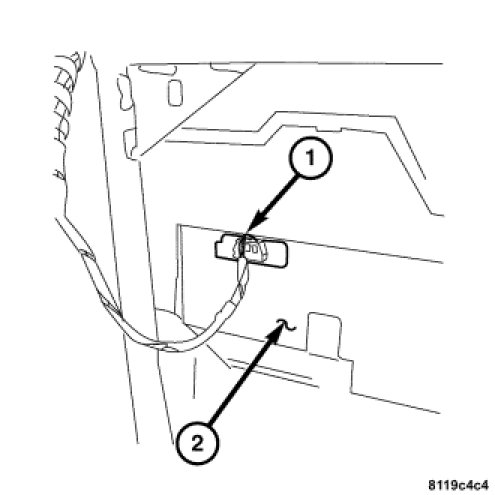

2. Remove the heater core temperature sensor (1) located on the front of the heater A/C case (2).
3. Disconnect the heater core temperature sensor harness connector from the sensor.
