Installation







INSTALLATION

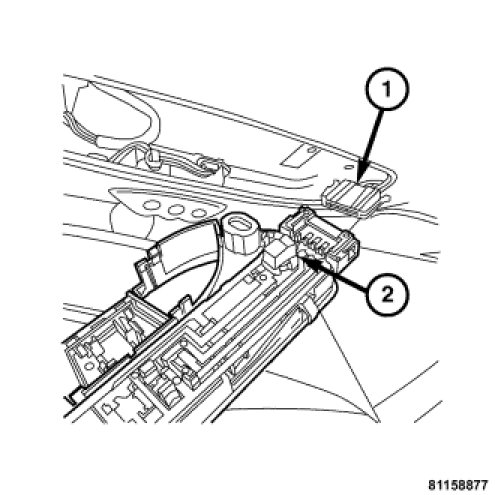

1. Connect the courtesy lamp switch/unit harness connector (1) and align into the headliner opening.
2. Install the retaining screws and secure.
3. Install the lens cover into the courtesy lamp switch/unit body.
4. Connect the negative battery cable.
