Installation







INSTALLATION





1. Install the harness connectors to the underhood accessory fuse block.

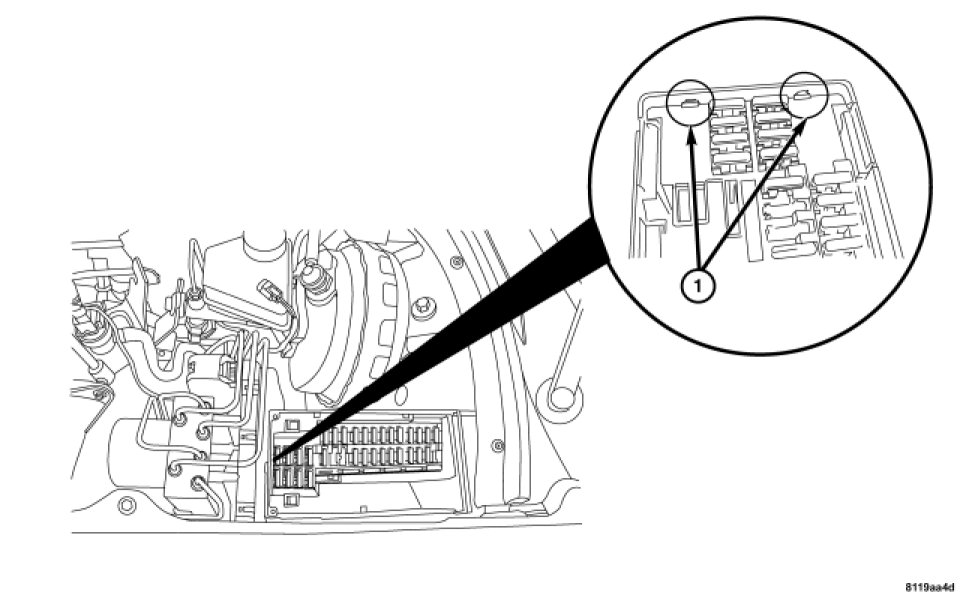

2. Push the underhood accessory fuse block down into the box until the rear tabs and the front two tabs (1) connect.
3. Install the lid.
4. Connect the negative battery cable.
