Camshaft Position Sensor - Installation

INSTALLATION





NOTE: Lubricate the camshaft position sensor O-ring with engine oil.

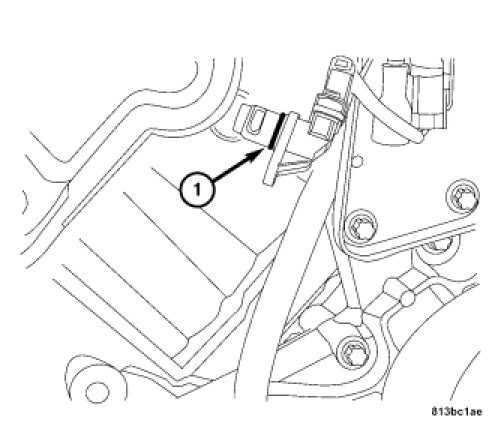

1. Inspect the camshaft position sensor O-ring (1) for damage.
2. Lubricate the camshaft position sensor O-ring as necessary.




3. Position the camshaft position sensor on the cylinder head.

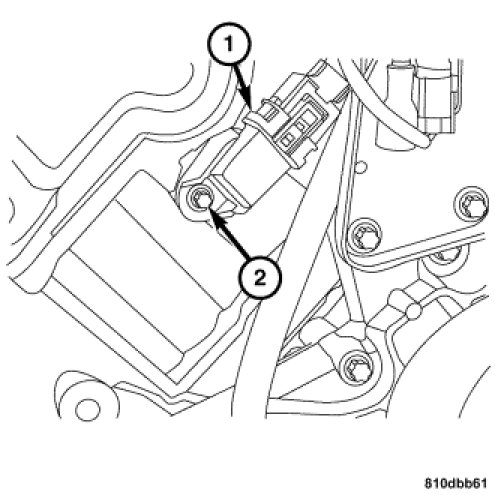

4. Install the retaining bolt (2). Tighten the retaining bolt to 8 Nm (71 in. lbs.).
5. Connect the camshaft position sensor harness connector (1).
6. Connect the negative battery cable.
