Crankshaft Position Sensor - Removal

REMOVAL

1. Disconnect the negative battery cable.
2. Remove the air cleaner housing. Air Cleaner Housing - Removal.
3. Disconnect the crankshaft position sensor harness connector.

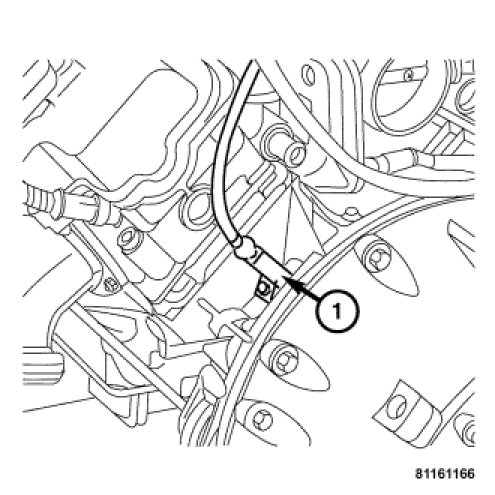

4. Remove the retaining bolt and the crankshaft position sensor (1).
