Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.

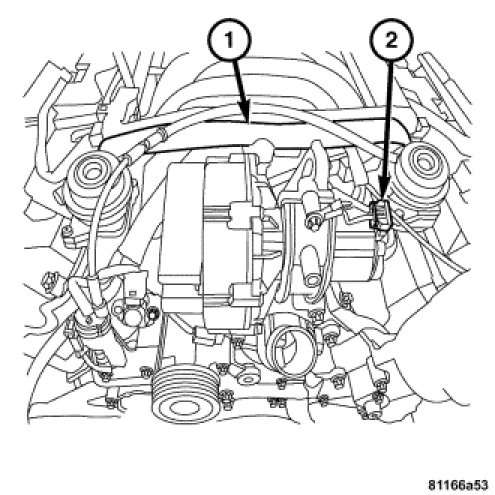

3. Disconnect the air pump switchover tube (1).
4. Disconnect the air pump harness connector (2).

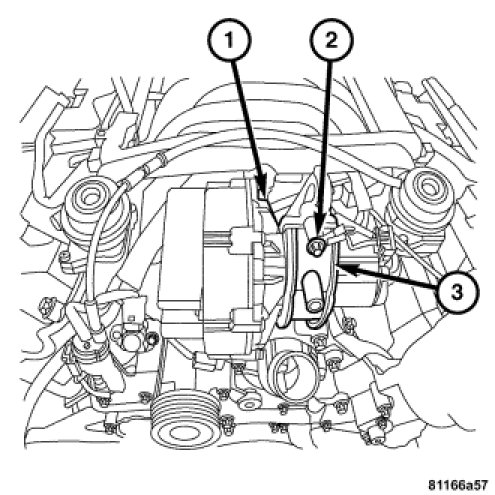

5. Remove the air pump retaining bolt (2).
6. Remove the air pump (1) from the air pump retaining bracket (3).
