Spark Plug - Removal

REMOVAL





CAUTION: When disconnecting a high tension cable from a spark plug or from the ignition coil, twist the rubber boot slightly (1/2 turn) to break it loose. Grasp the boot (not the cable) and pull it off with a steady, even force.

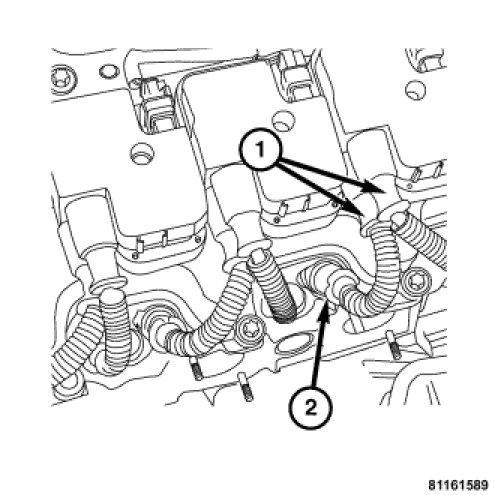

1. Twist and pull the metal clad spark plug cable boots (2) to remove them from the spark plugs.




NOTE: Avoid allowing debris to fall into the spark plug holes during replacement.

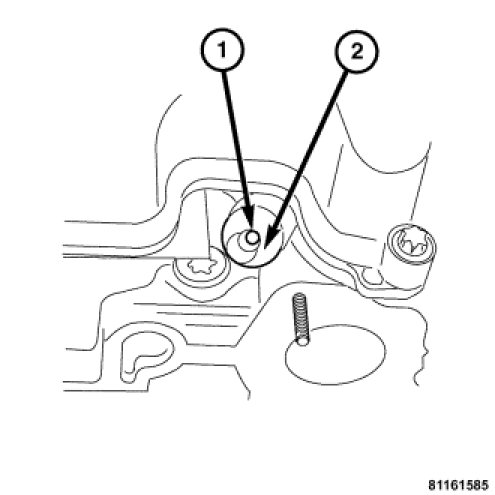

2. Clean the cylinder head spark plug recesses (2) using low pressure compressed air.

CAUTION: Do not use power tools to replace spark plugs. Damage to the cylinder head can result.

3. Use a rubber insulated spark plug socket and a hand ratchet to remove the spark plugs (1).
4. Remove the spark plugs (1) from the engine.
