Installation

INSTALLATION





NOTE: Insure the original mounting hole pattern is used when installing the power window motor.

NOTE: Before installing, lightly grease the gear on the power window motor.

1. Position the power window motor into the door.

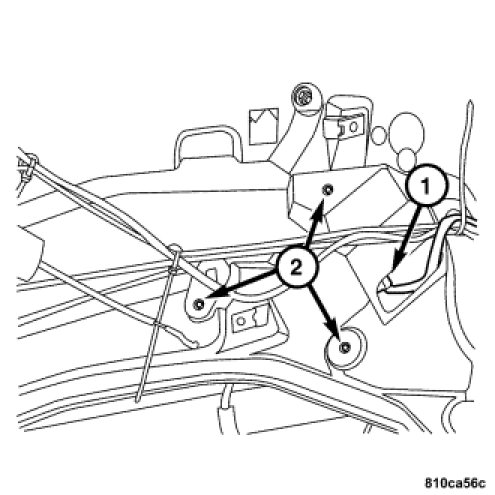

2. Install the three power window motor attaching rivets (2).
3. Connect the power window motor harness connector (1).

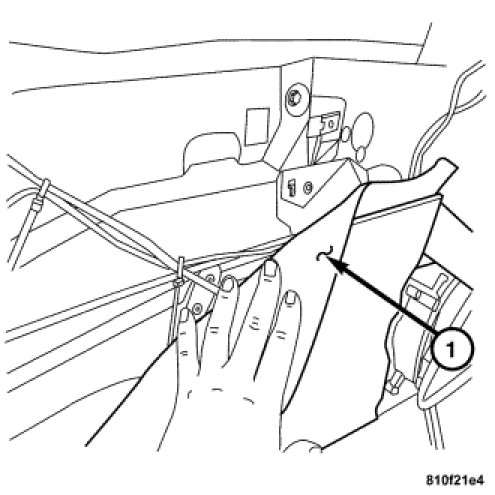

4. Install the door watershield (1).
5. Install the door interior trim panel. Door Trim Panel - Installation.
6. Connect the negative battery cable.
