Installation







INSTALLATION

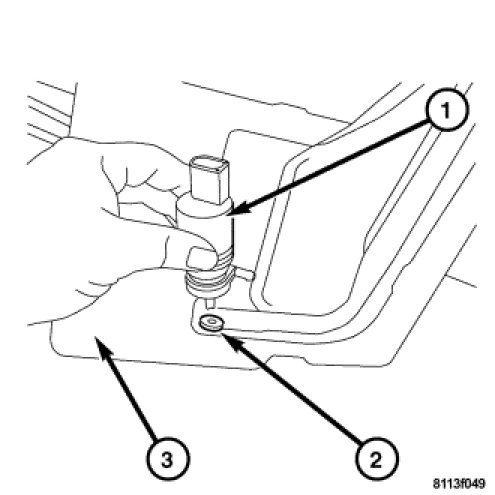

1. Insert the washer pump motor (1) into the rubber grommet (2) at the base of the washer reservoir (3).
2. Press the washer pump motor downward until fully seated.
3. Install the washer reservoir. Washer Reservoir - Installation.
