Installation

INSTALLATION





1. Install the cable.
2. Install the retaining clip holding cable to servo.




3. Install the vacuum line to the speed control servo nipple.
4. Connect and Lock the electrical connector to the speed control servo.




5. Install the speed control servo to the mounting bracket.
6. Install the 2 nuts to the speed control servo studs and tighten to 7 Nm (60 in. lbs.).

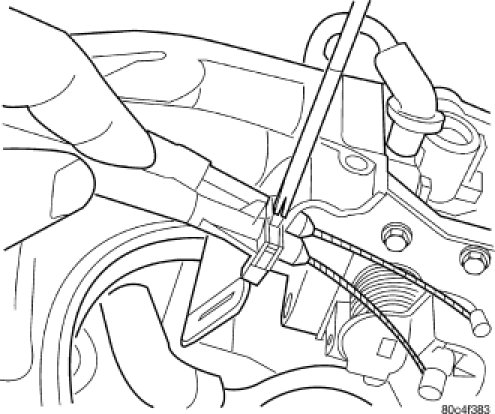

7. Install speed control cable to throttle cable bracket.
8. Install the speed control cable to the throttle body lever.




9. Install the throttle control shield.




10. Connect the negative battery cable.
