Installation

INSTALLATION

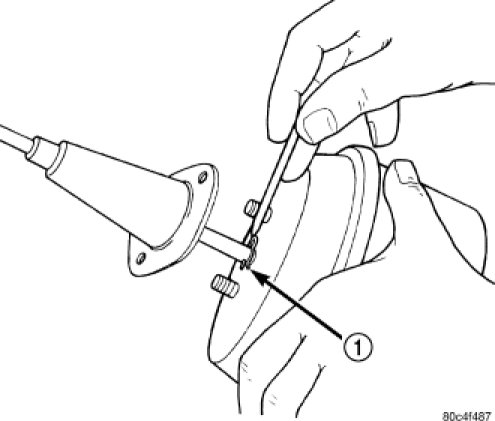

1. Install the retaining clip holding cable to servo.

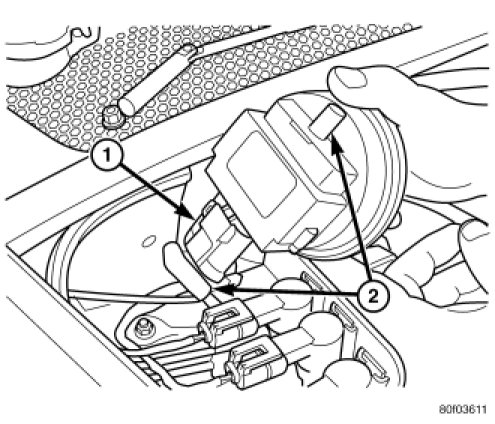

2. Install the vacuum line to the speed control servo.
3. Connect and lock the electrical connector to the speed control servo.

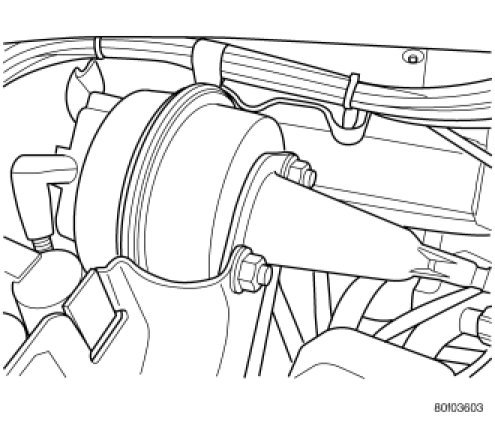

4. Install the speed control servo to the mounting bracket.
5. Install the 2 nuts from the speed control servo studs.

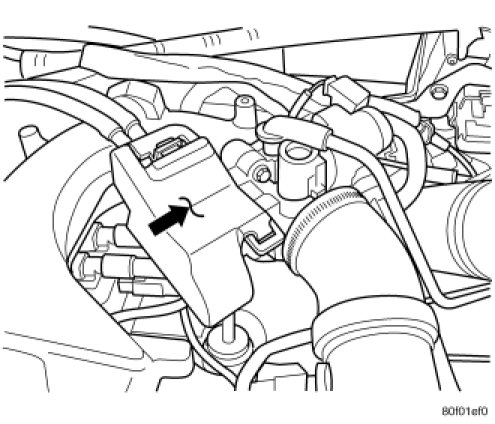

6. Install the throttle control shield.

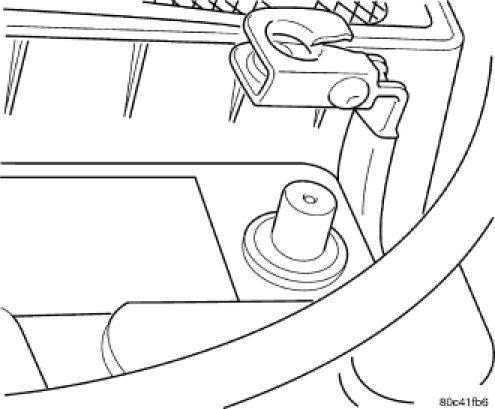

7. Connect the negative battery cable.
