Motor-Window-Left Front

Component ID: 189
Component : MOTOR-WINDOW-LEFT FRONT

Connector:
Name : MOTOR-WINDOW-LEFT FRONT
Color : BLACK
# of pins : 2
Qualifier : (PT44)




Pin Circuit Description
1 Q21 14OR/WT LEFT FRONT WINDOW DRIVER (DOWN)
2 Q11 14OR/LG LEFT FRONT WINDOW DRIVER (UP)

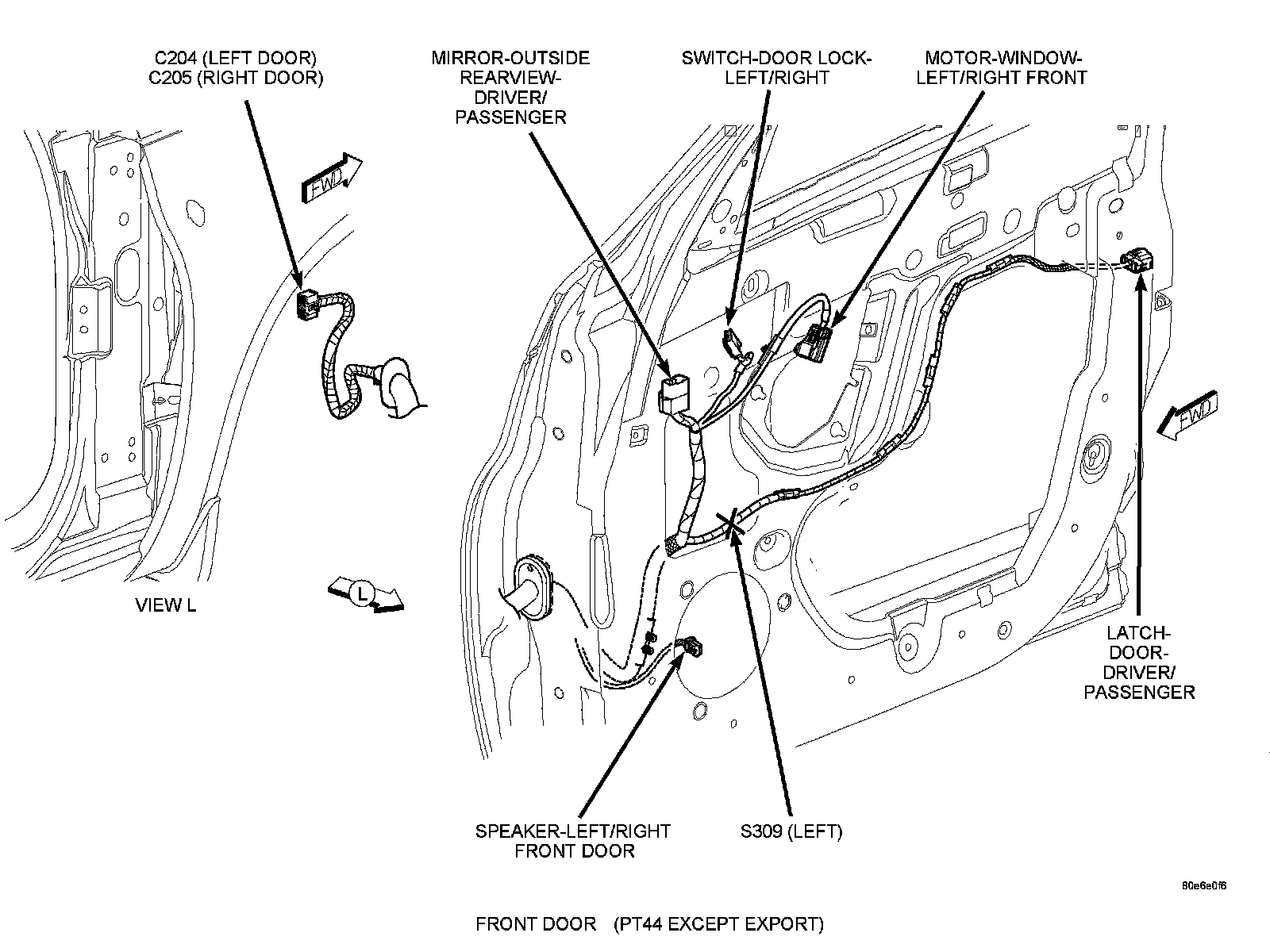

Component Location - 44
