Trunk / Liftgate Switch

Component ID: 372
Component : SWITCH-DECKLID RELEASE

Connector:
Name : SWITCH-DECKLID RELEASE
Color : BLACK
# of pins : 2
Qualifier : (PT27)




Pin Circuit Description
1 P1 20TN/LG DECKLID RELEASE SWITCH SENSE
2 Z906 20BK GROUND

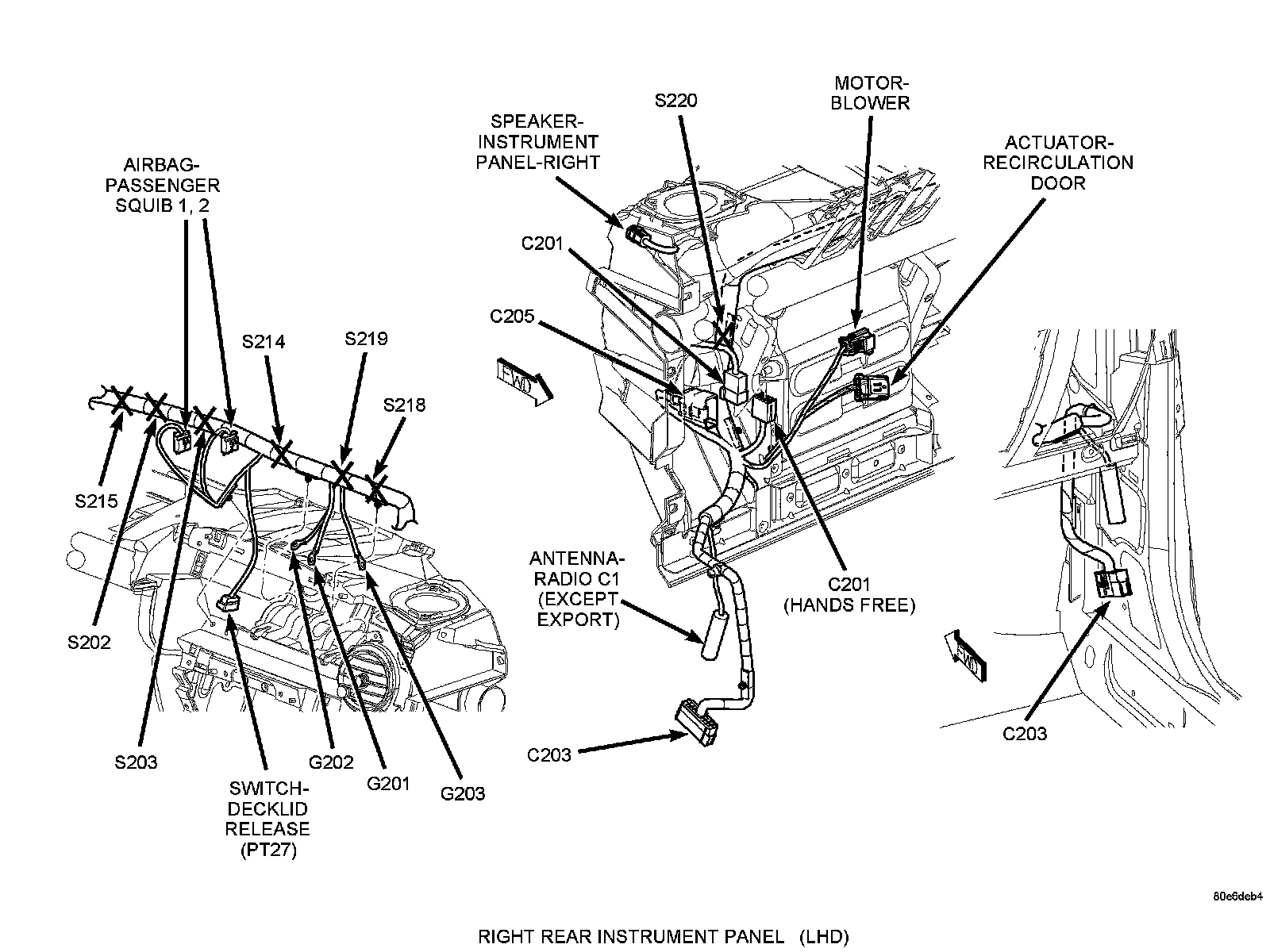

Component Location - 29




Component Location - 33
