Installation

INSTALLATION

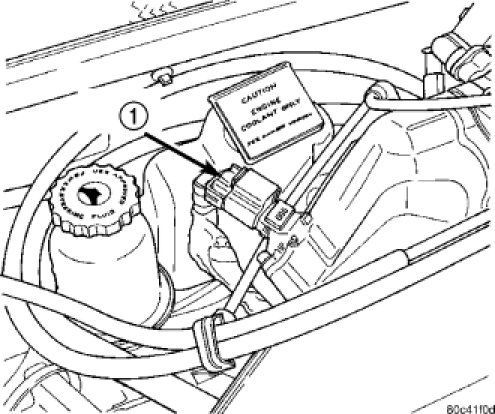

The MAP sensor attaches to the intake manifold plenum (1).

1. Insert sensor into intake manifold while making sure not to damage O-ring seal.
2. Tighten mounting screws to 2 Nm (20 in. lbs) torque for plastic manifold.
3. Attach electrical connector to sensor.
4. Install the negative battery cable.
5. Install the air cleaner lid and makeup air hose.
