Sensor - Map - 4.0L

Fig 1: Removing/Installing MAP
GC0049846Courtesy of CHRYSLER LLC
  1. Install sensor and rotate.

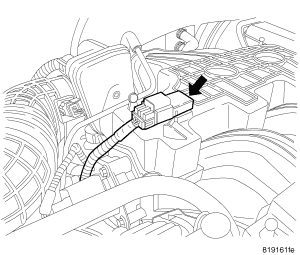

    Fig 2: MAP Sensor 4.0L
    GC0049845Courtesy of CHRYSLER LLC
  2. Attach electrical connector to sensor.
  3. Connect negative battery cable.
