Installation

INSTALLATION

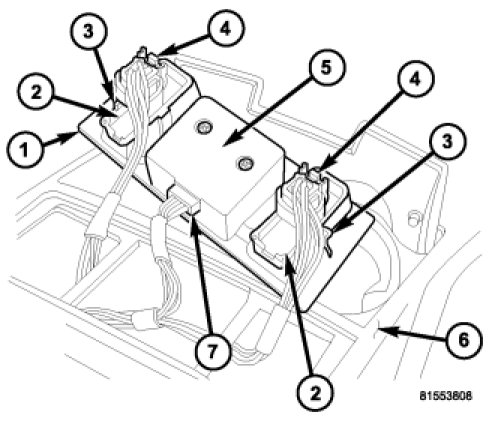

1. Install both rear heated seat switches (2) into the back of the rear floor console switch bezel (1). Make sure that the switch retaining tabs are fully engaged to the bezel 2nd Row.
2. Connect the wire harness connectors (4 and 7) to the rear blower motor switch (5) and the rear heated seat switches.
3. Install the rear floor console switch bezel into the rear floor console (6) by pushing it in through the front surface of the console. Make sure that the bezel retaining tabs (3) are fully engaged to the console.
4. Install the rear floor console Floor Console - Installation.
5. Reconnect the negative battery cable.
