Camshaft Position Sensor - Installation

3.8L





1. Install camshaft position (CMP) sensor.

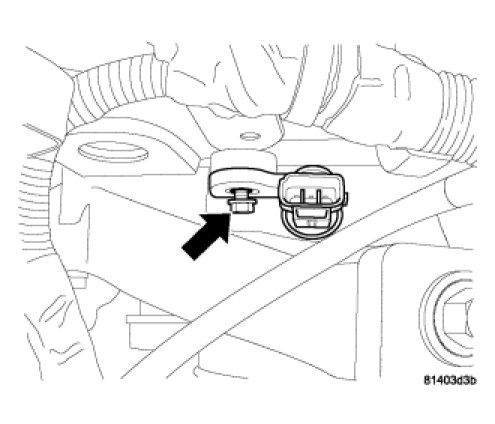

2. Tighten CMP sensor mounting bolt to 14 Nm (10 ft. lbs.).

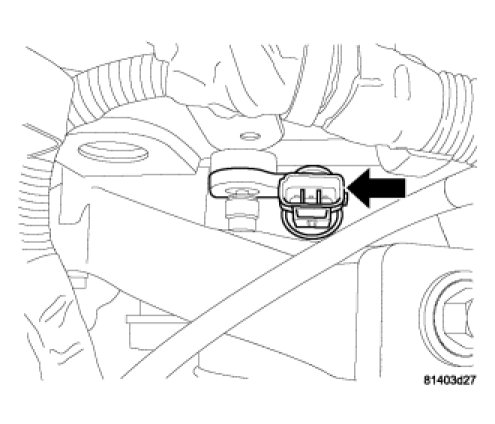

3. Connect electrical connector.
4. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
