Installation

INSTALLATION

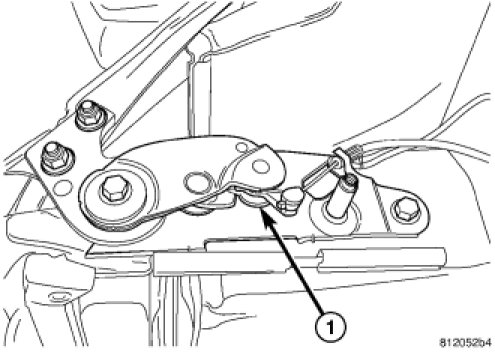

1. Place outboard fold flat mechanism into position.
2. Install two bolts attaching outboard fold flat mechanism to outer seat back. Install two nuts attaching outboard fold flat mechanism to outboard riser.

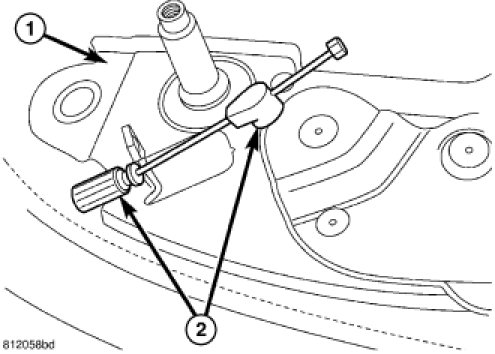

3. Connect fold flat cable to outboard fold flat mechanism.

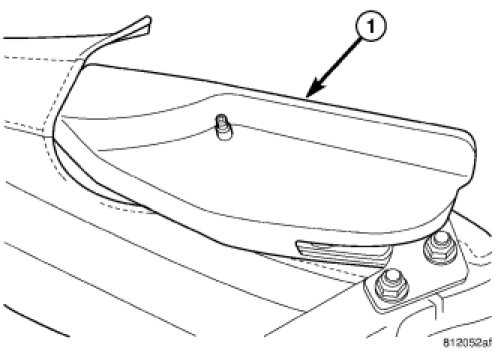

4. Install outboard seat back shield.

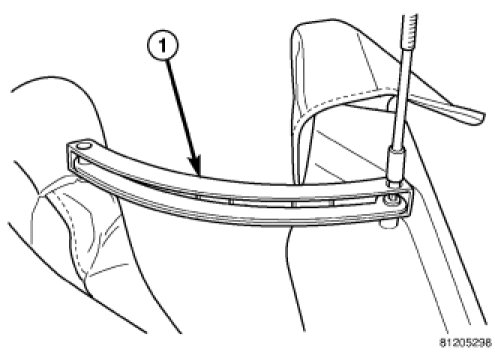

5. Place drive link assembly into position.




6. Install two bolts (on outboard side of seat) attaching drive link assembly. Tighten to 10 Nm (7 ft. lbs.) torque.
7. Install third row seat. Seat - Installation.
8. Install rear floor stowage bin. Installation.
9. Close liftgate.
