Camshaft Position Sensor - Installation

4.0L

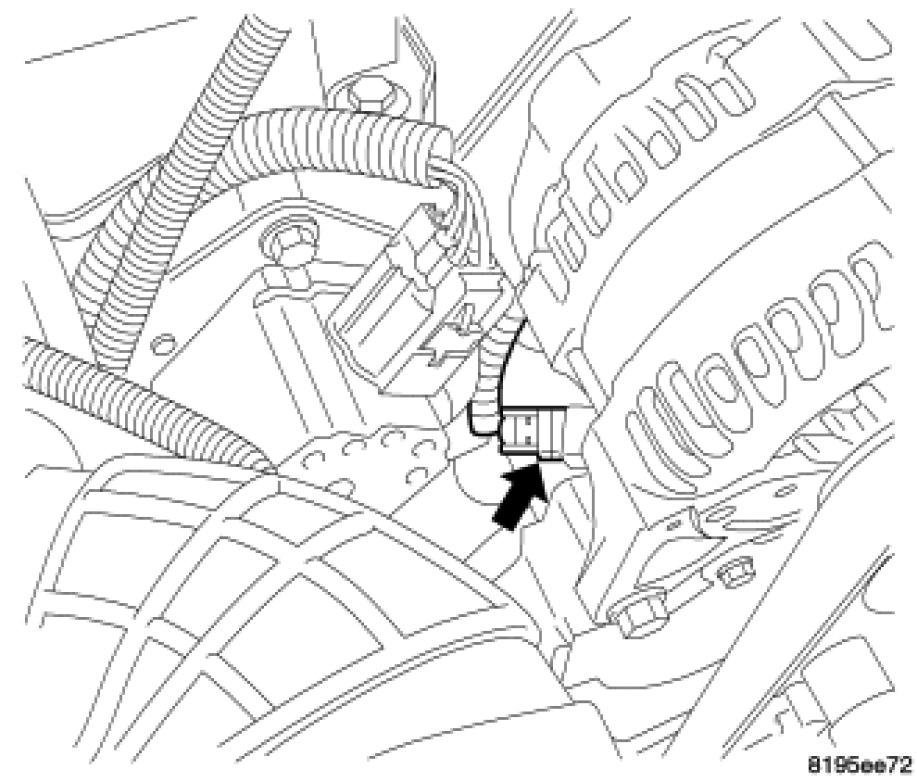

1. Install camshaft (CMP) sensor.
2. Install mounting bolt and tighten to 12 Nm (106 in. lbs.)
3. Connect electrical connector.

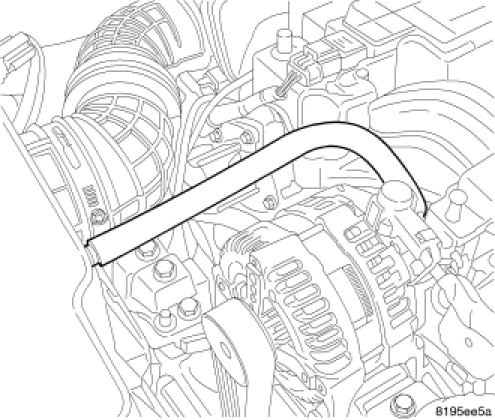

4. Install makeup air hose.
5. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
