Manifold Pressure/Vacuum Sensor: Locations

Component ID: 354
Component : SENSOR-MAP

Connector:
Name : SENSOR-MAP
Color : GRAY
# of pins : 3
Qualifier : (3.8L)




Pin Circuit Description
1 K1 20VT/BR MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY

Component Location - 10




Component Location - 12






Connector:
Name : SENSOR-MAP
Color : BLACK
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 K1 20VT/BR MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY

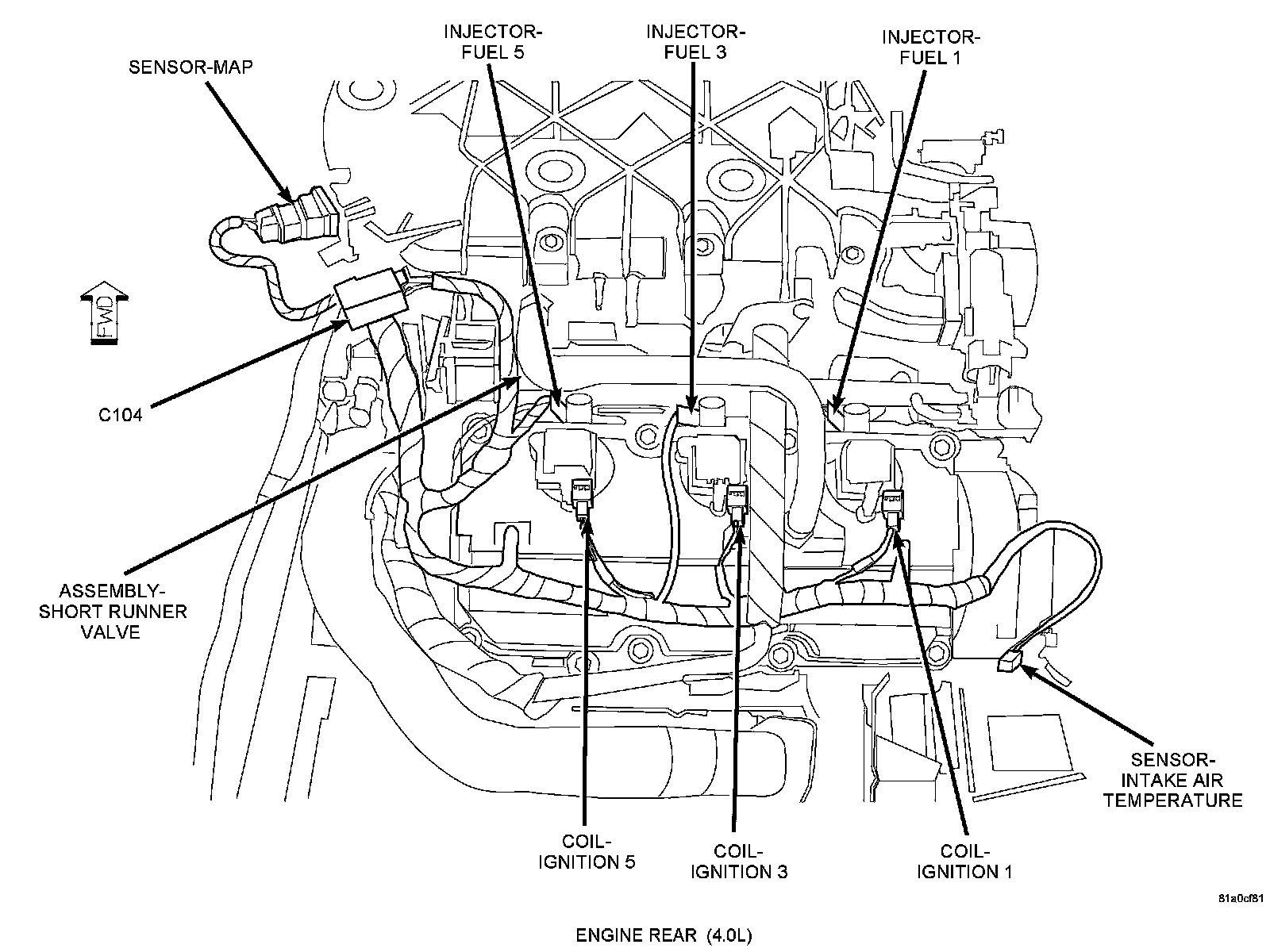

Component Location - 10




Component Location - 12
