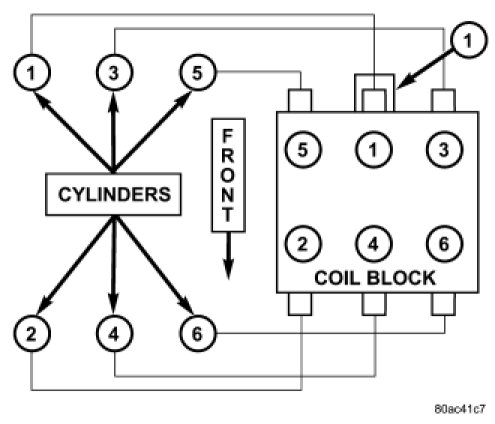

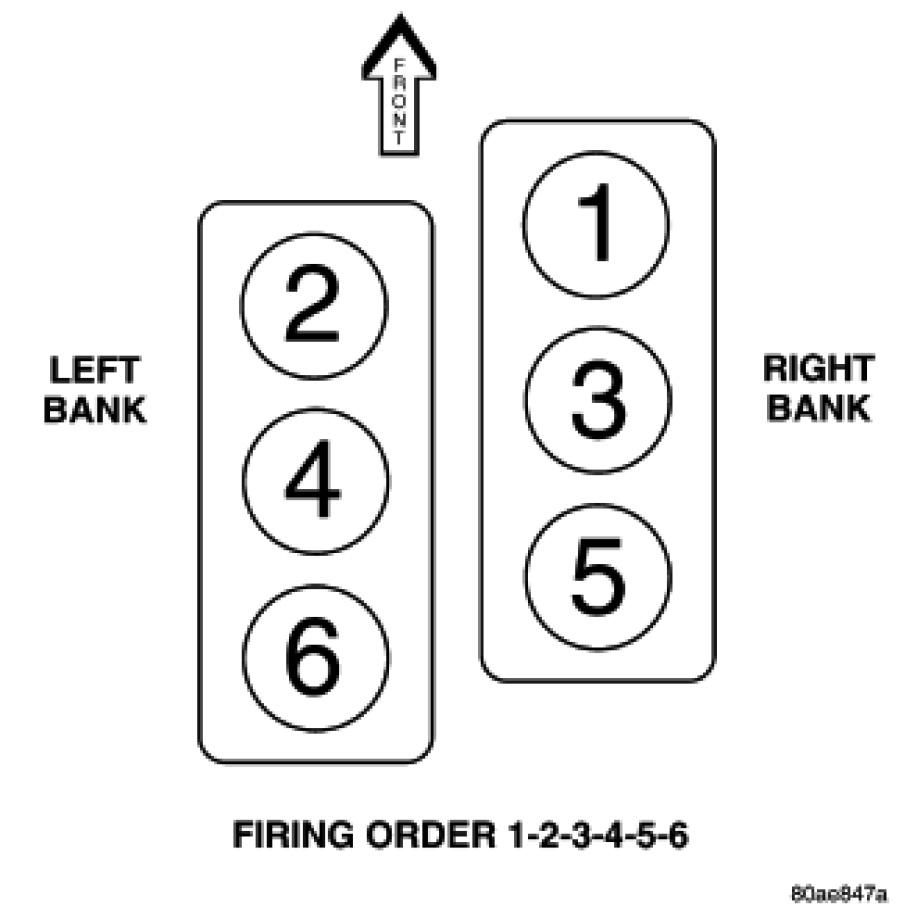

Firing Order
FIRING ORDER
3.8L
The
firing order
is 1-2-3-4-5-6.
4.0L
The
firing order
is 1-2-3-4-5-6.
