Removal

REMOVAL





1. Remove instrument cluster bezel, Instrument Panel Cluster Bezel - Removal.




2. Insert key and rotate to the one o'clock position.

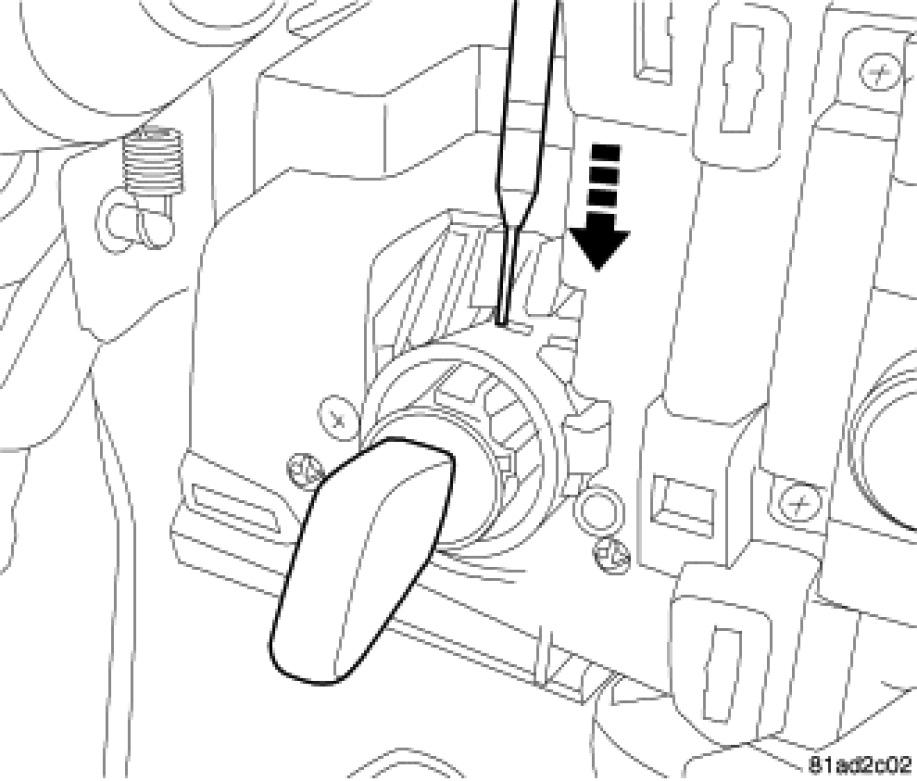

3. Use thin screw driver to depress locking pin for key cylinder.
4. Pull key assembly from switch housing.
