Sensor - Map: Installation: 2.7L

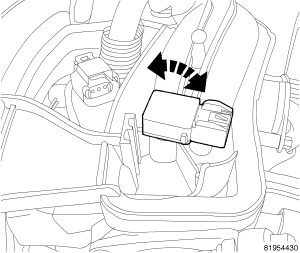

Fig 1: Turning MAP Sensor To Remove/Install
GC0060569Courtesy of CHRYSLER LLC
  1. Install sensor to intake manifold plenum and turn clockwise to tighten.
    Fig 2: Identifying MAP Sensor Electrical Connector
    GC0060568Courtesy of CHRYSLER LLC
  2. Attach electrical connector to sensor.
  3. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
