Mass Air Flow (MAF) Sensor: Installation

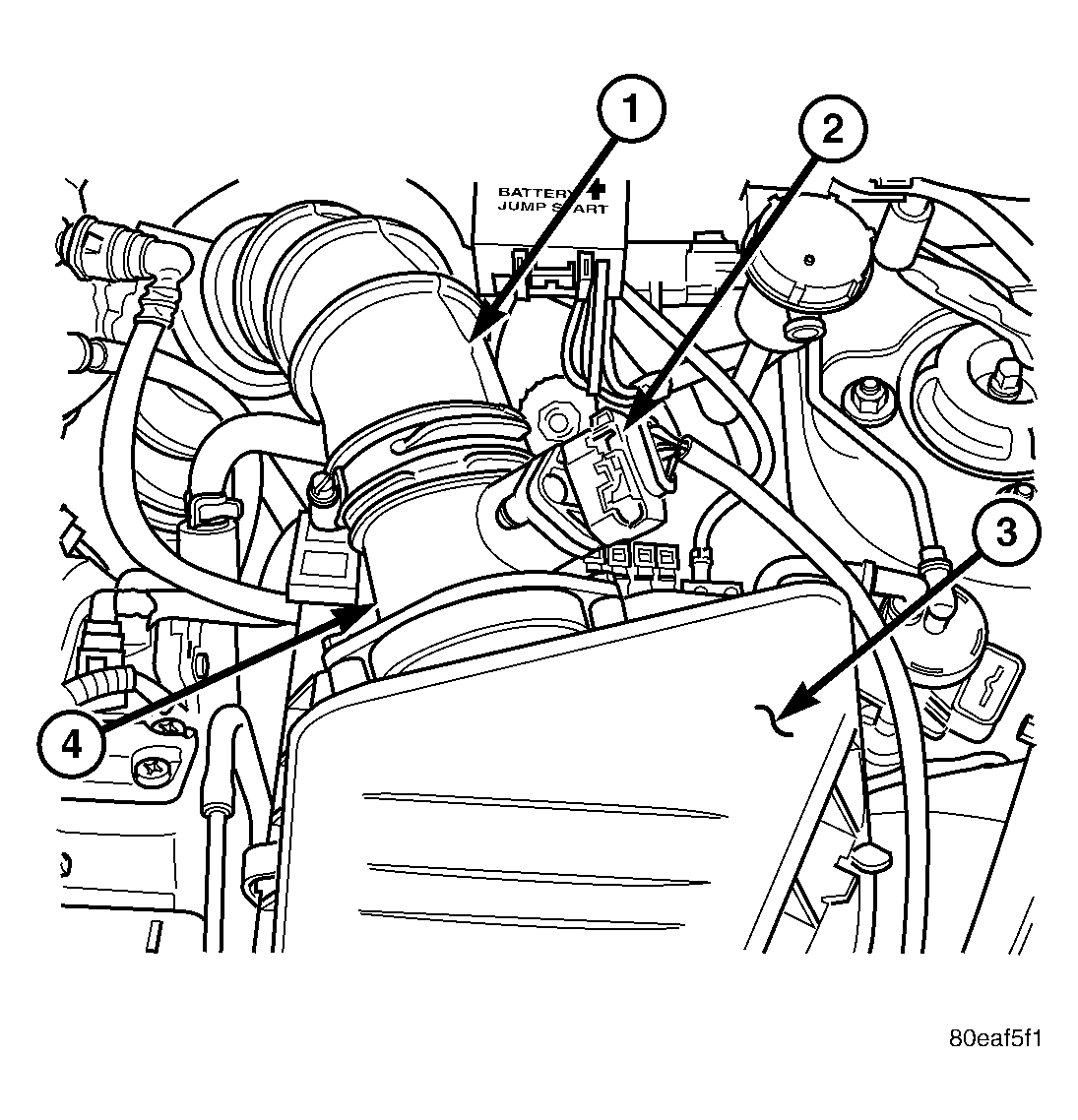

  1. Position mass air flow (MAF) sensor to air cleaner housing and tighten bolts. See Figure.
  2. Connect air cleaner to turbocharger hose at MAF sensor. See Figure.
  3. Connect MAF sensor electrical connector. See Figure.
  4. Connect negative battery cable.
