Section 16 (Electronic Control Modules - Electrical Diagnostics)
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*No Response From Automatic Temperature Control Module
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic
WARNING:
This page is about a different car, the 2008 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

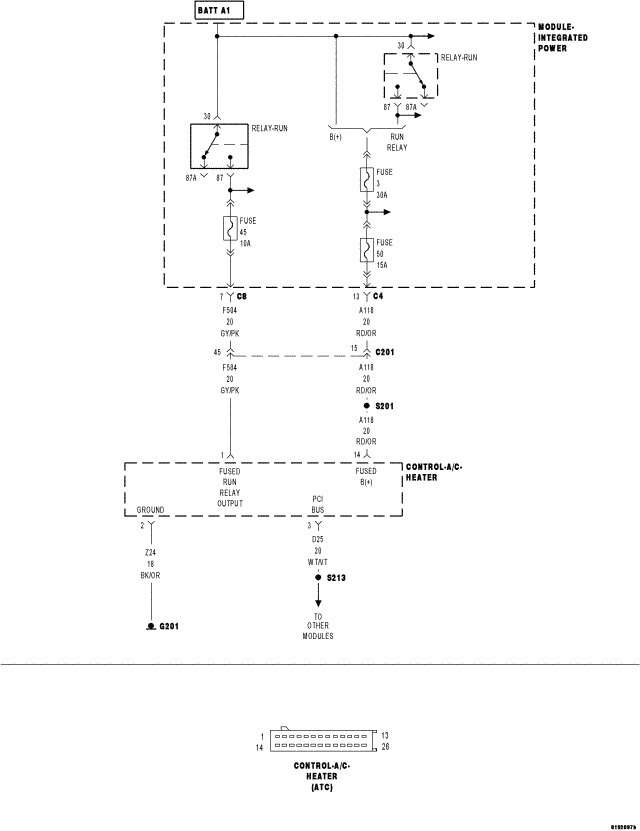

Fig 1: Automatic Temperature Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
