Installation






INSTALLATION

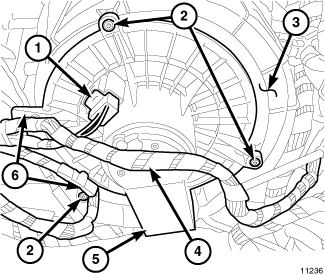

1. Position the blower motor (5) into the HVAC housing (3).
2. Install the three screws (2) that secure the blower motor to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Connect the wire harness connector (1) to the blower motor and engage the wire harness connector locking tab.
4. Engage the HVAC wire harness onto the two wire harness retainers (6).
5. Install the instrument panel silencer onto the passenger side of the instrument panel Silencer Panel - Installation
6. Reconnect the negative battery cable.
