Front Axle

FLUID FILL

NOTE: The 175MM FIA Front Axle assembly is designed for 'fill for life' and is not manufactured with a fluid drain plug.





1. Raise and support vehicle. Service and Repair

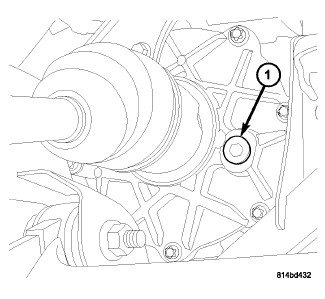

2. Remove axle fill plug (1).
3. Fill axle with 600ml (0.64 qts.) of Mopar(R) 75W-90 Synthetic Gear Lubricant. Fluid should be within 3/16" of bottom of fill hole.
