Floor Shift






FLOOR SHIFTER

NOTE: The WIN initialization procedure is required whenever the WIN or shaft lock module is replaced on vehicles equipped with the shaft lock module.





1. Reconnect the electrical connector (1) to the WIN and position the WIN back into the instrument panel.

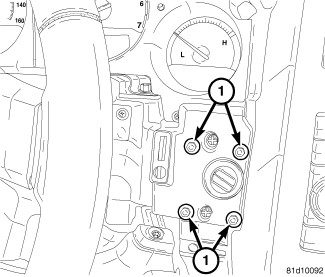

2. Install the four screws (1) through the instrument panel into the WIN.
3. Install the instrument panel trim cover ensuring that the cover snaps into the securing clips.

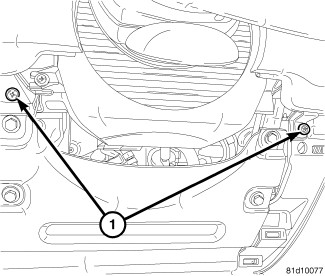

4. Install the two lower instrument panel screws (1).
5. Install the lower steering column cover reinforcement and the steering column trim coverSteering Column Opening Cover - Installation
6. Connect the battery negative cable.
