Power Window Switch - Installation






INSTALLATION






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

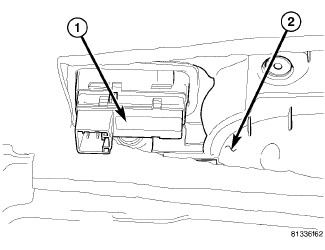

1. Install switch (1) to rear door trim panel (2).
2. Install rear door trim panel Rear Door Trim Panel - Installation.
3. Connect battery negative cable.
