Engine Specifications






SPECIFICATIONS

GENERAL DESCRIPTION






CYLINDER BLOCK






PISTONS






PISTON PINS






PISTON RINGS






CONNECTING RODS






CRANKSHAFT






CAMSHAFT






VALVE TIMING

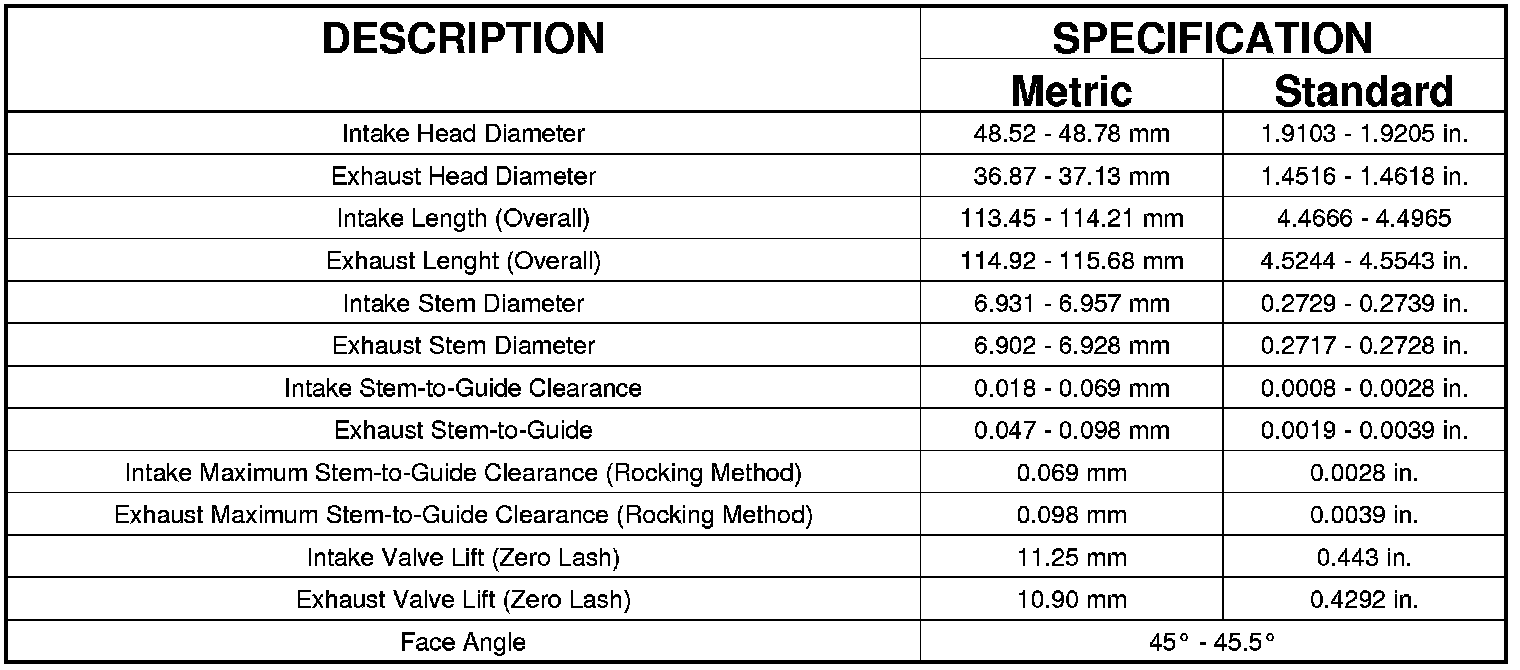

VALVES






VALVE SPRING






CYLINDER HEAD






OIL PUMP






OIL PRESSURE
