Power Distribution Center C1 (Hard Wired) 20 Way

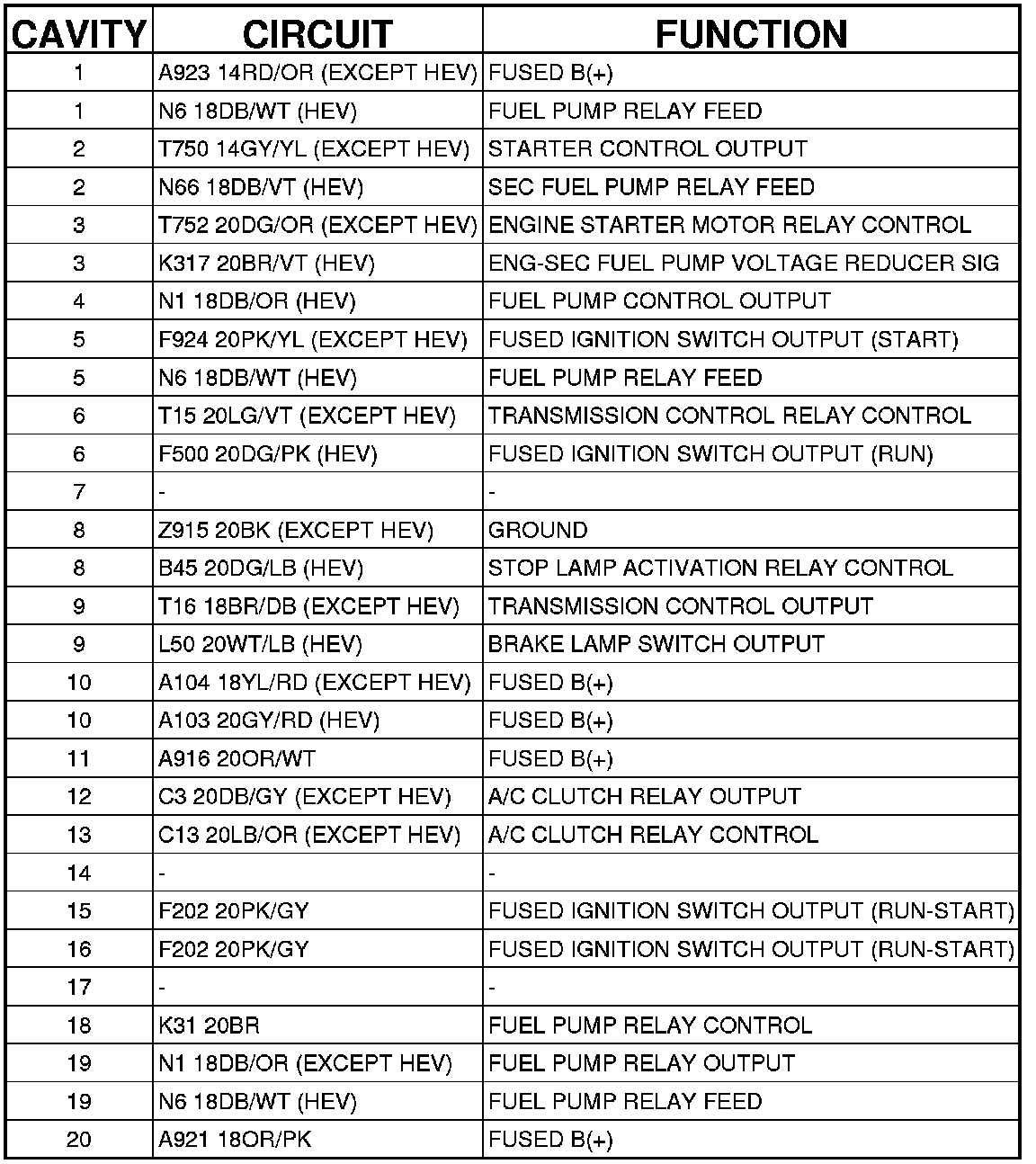

Connector C1 - (HARD WIRED) 20 WAY
POWER DISTRIBUTION CENTER - (HARD WIRED) 20 WAY
