Trunk / Liftgate Motor

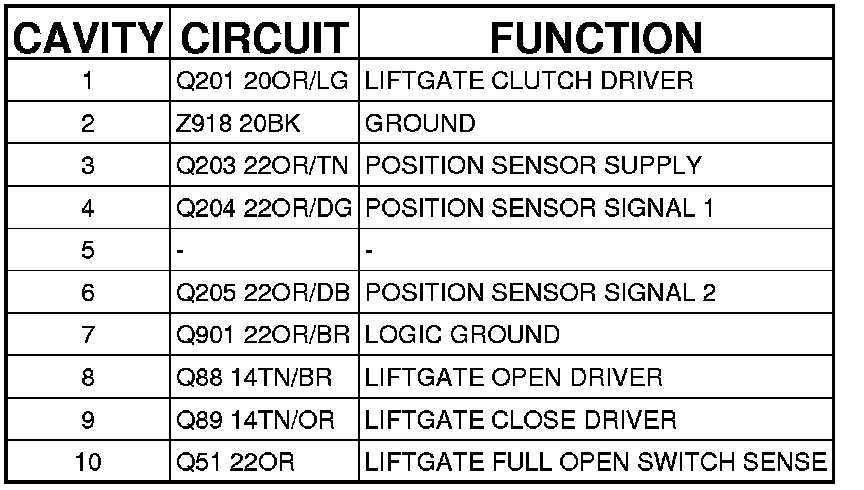

Connector - (BODY) 10 WAY




ASSEMBLY-POWER LIFTGATE DRIVE UNIT - (BODY) 10 WAY
