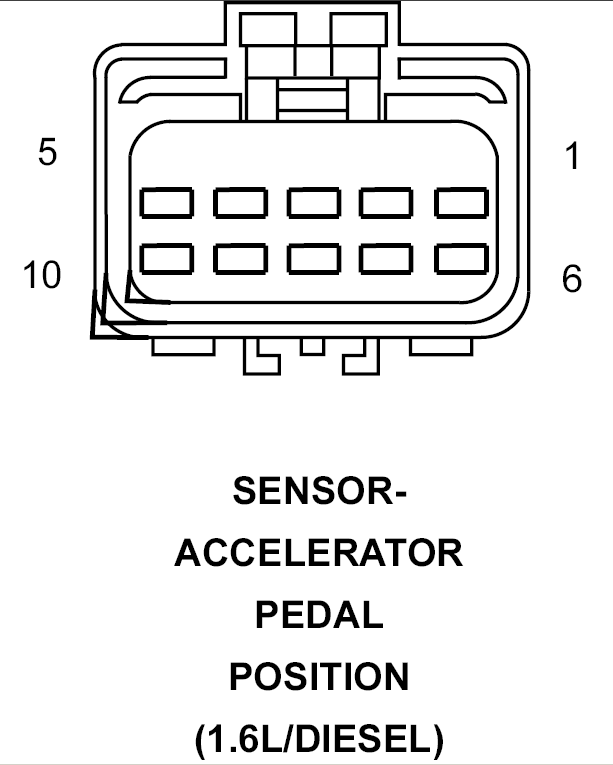

Accelerator Pedal Position Sensor (1.6L/Diesel) Connector End View

SENSOR-ACCELERATOR PEDAL POSITION - 10-WAY (1.6L/DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	K167 20BR/YL	APPS NO. 1 RETURN
3	K852 20BR/VT	APPS NO. 1 5 VOLT SUPPLY
4	K23 20BR/WT	APPS NO. 1 SIGNAL
5	K854 20VT/BR	APPS NO. 2 5 VOLT SUPPLY
6	-	-
7	-	-
8	K400 20BR/VT	APPS NO. 2 RETURN
9	-	-
10	K29 20WT/BR	APPS NO. 2 SIGNAL
