Automatic Shut Down Relay Connector End View

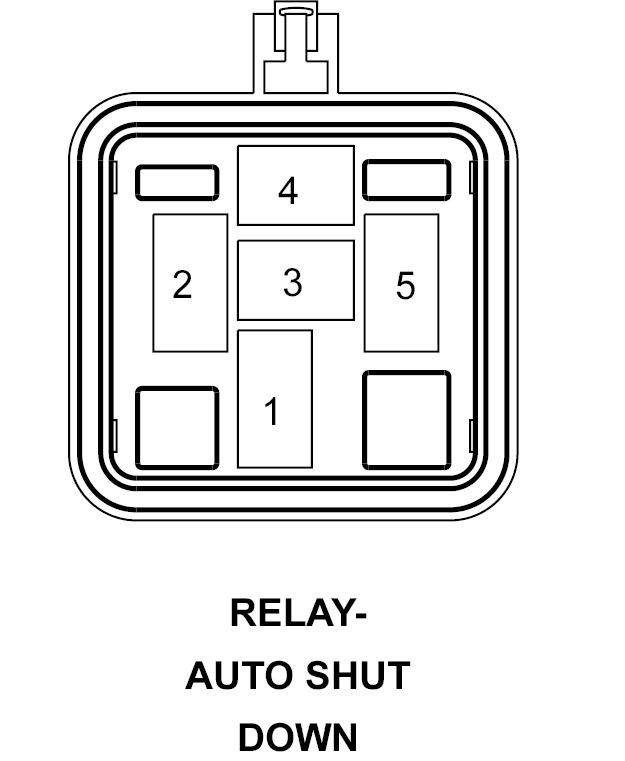

RELAY-AUTO SHUT DOWN

GPT710001Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A14 12RD/YL FUSED B(+)
2 K334 20BR ASD RELAY CONTROL
3 - -
4 K542 12BR ASD RELAY OUTPUT
5 A14 12RD/YL FUSED B(+)
