Generator (Diesel) Connector End View

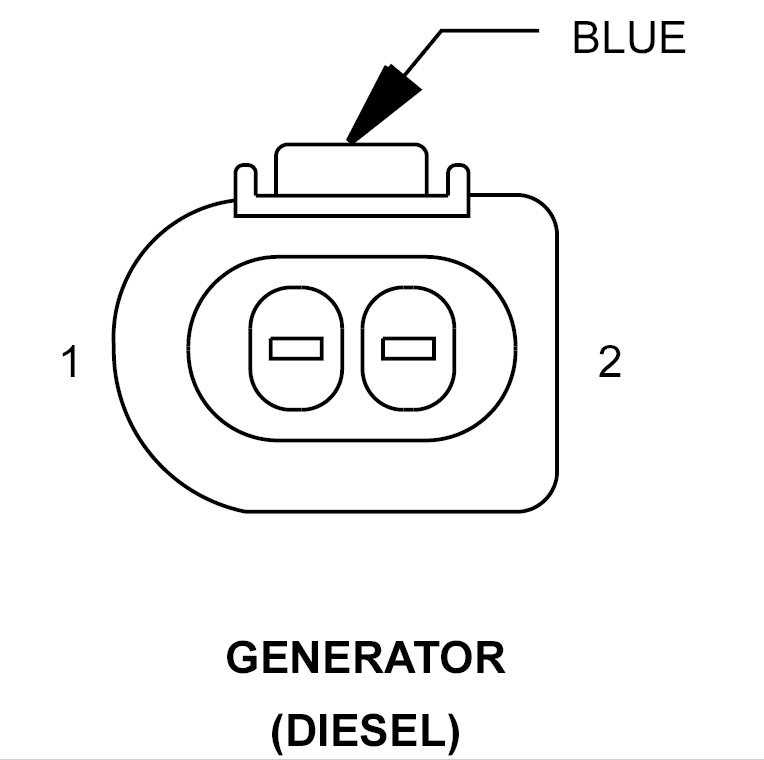

GENERATOR - BLUE 2-WAY (DIESEL)

GPT780115Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D509 18LB LIN BUS


GENERATOR-EYELET - 1-WAY (DIESEL)

GPT780117Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A11 4BK/GY B(+)
