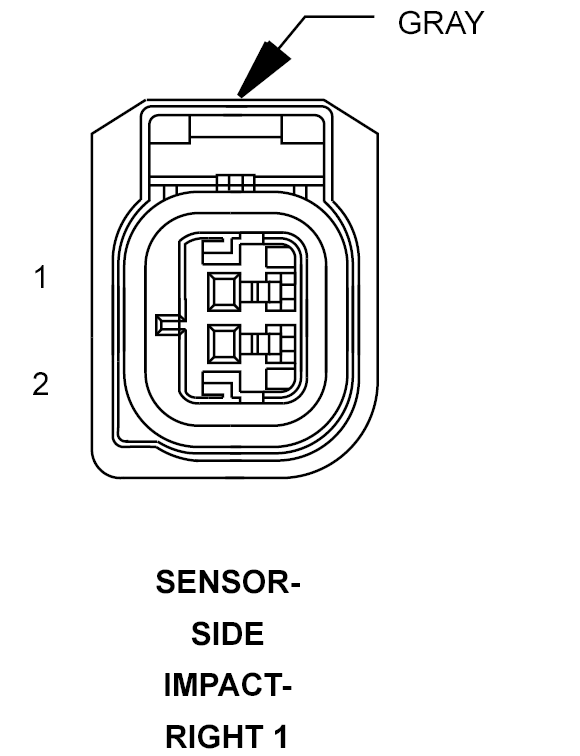

Right Side Impact Sensor 1 Connector End View
SENSOR-SIDE IMPACT-RIGHT 1 - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R16 20BR/LG
RIGHT SIDE IMPACT SENSOR 1 GROUND
2
R14 20TN/LG
RIGHT SIDE IMPACT SENSOR 1 SIGNAL
Courtesy of CHRYSLER CORP.
