P0335-Crankshaft Position Sensor Circuit: Notes

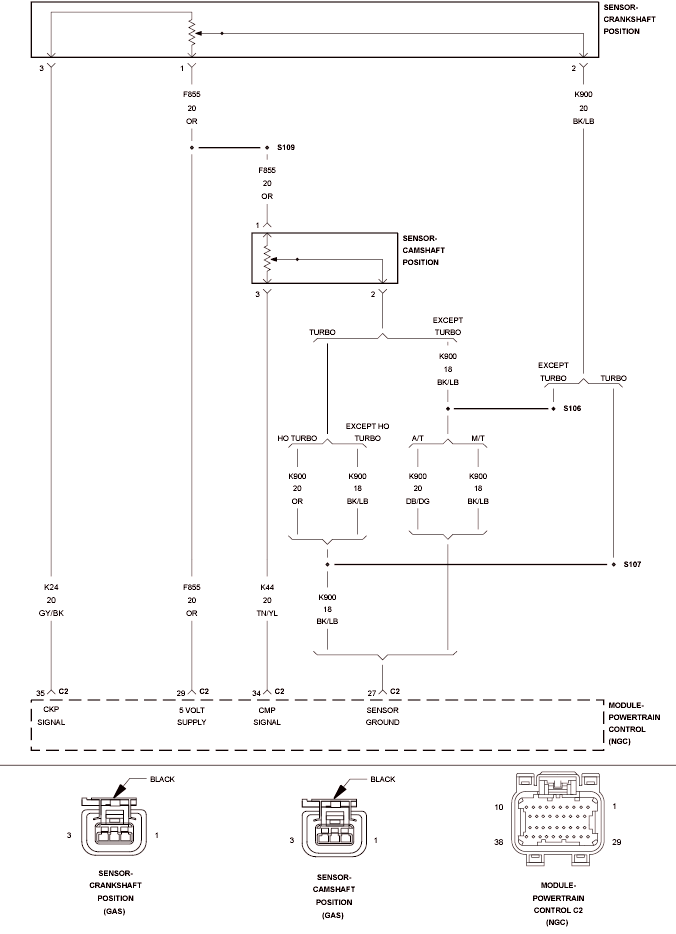

Fig 1: Crankshaft/Camshaft Position Sensor Circuit

GC0117119

Courtesy of CHRYSLER LLC
