P1115-General Temperature Rationality: Notes

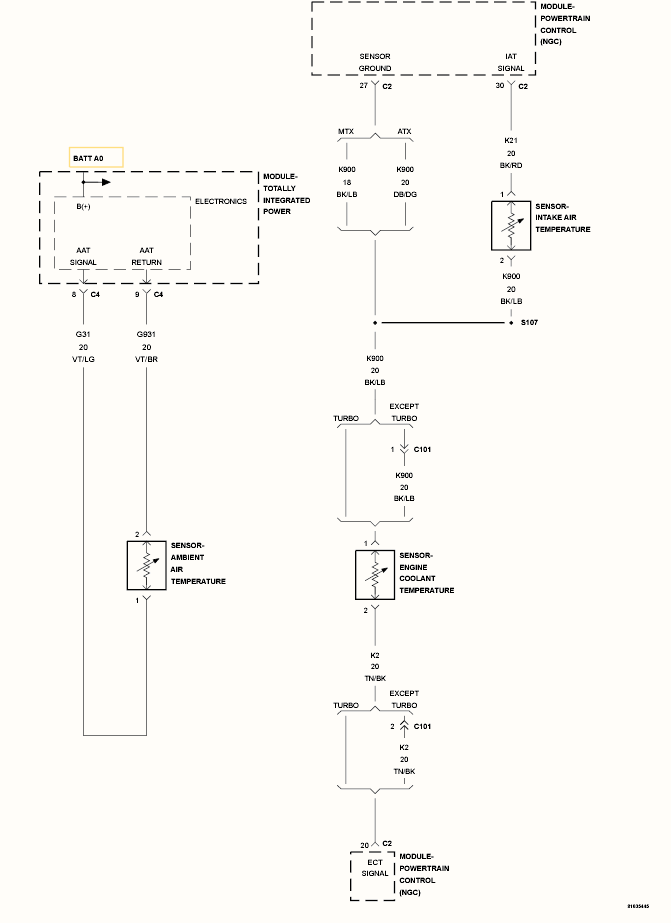

Fig 1: Ambient Air, Engine Coolant & Intake Air Temperature Sensor Input Circuit
GC0117332Courtesy of CHRYSLER LLC
