PLUG, Glow: Removal: Removal

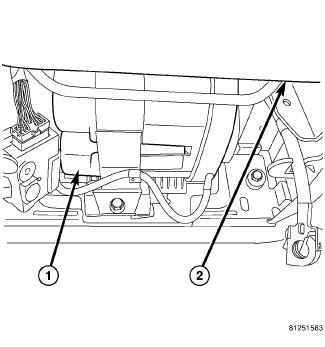

Fig 1: Battery Location

GC0114331

Courtesy of CHRYSLER LLC

1 - BATTERY

2 - PASSENGER SEAT

Disconnect negative battery (1) cable.

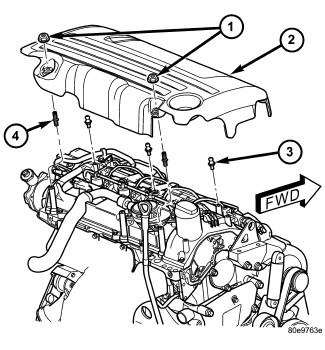

Fig 2: Engine Cover Mounts

GC0114332

Courtesy of CHRYSLER LLC

1 - ENGINE COVER RETAINING NUTS

2 - ENGINE COVER

3 - ENGINE COVER MOUNTS

4 - ENGINE COVER MOUNTING STUDS

Remove engine cover (2). Refer to Engine - Removal .

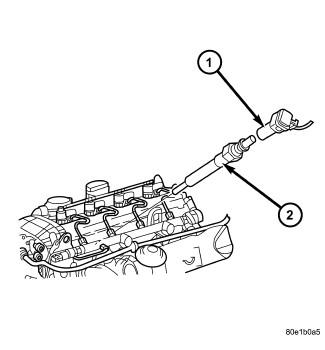

Fig 3: GLOW PLUG LOCATION - TYPICAL
Courtesy of CHRYSLER LLC

1 - GLOW PLUG ELECTRICAL CONNECTOR

2 - GLOW PLUG

NOTE: Before removing glow plugs, blow off the top of the engine with compressed air.
Disconnect glow plug electrical connector (1) .
Remove glow plug (2) from cylinder head .
