Strut, Suspension, Assembly: Installation: Installation

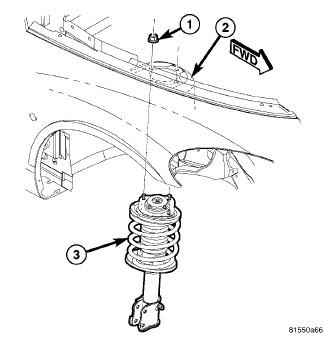

Fig 1: Strut Mounting To Tower

Courtesy of CHRYSLER LLC

Raise the strut assembly (3) into the strut tower (2), aligning the three studs on the strut assembly upper mount with the holes in strut tower. Install the three mounting nuts (1) on the studs. Tighten the three nuts to 26 N.m (19 ft. lbs.).

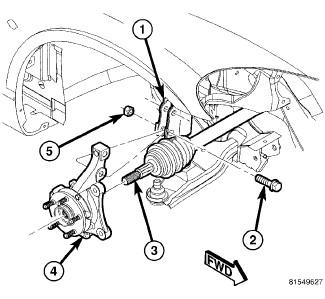

Fig 2: Front Knuckle Mounting
Courtesy of CHRYSLER LLC

CAUTION: The strut assembly-to-knuckle attaching bolts (2) are serrated and must not be turned during installation. Install the nuts while holding the bolts stationary in the knuckle.
Position the lower end of the strut assembly (1) in line with the upper end of the knuckle (4), aligning the mounting holes. Install the two attaching bolts (2) from the front of the vehicle. Install the nuts (5). While holding the bolts in place, tighten the nuts to 163 N.m (120 ft. lbs.).

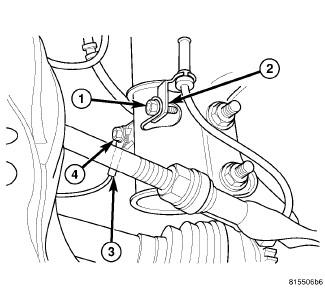

Fig 3: Ground Strap & ABS Sensor At Strut
Courtesy of CHRYSLER LLC
If equipped with antilock brakes, attach the wheel speed sensor routing bracket (2) to the rear of the strut (rearward ear) using its mounting screw (1). Tighten the mounting screw to 13 N.m (120 in. lbs.).
Attach the ground strap (3) to the rear of the strut (forward ear) using its mounting screw (4). Tighten the mounting screw to 13 N.m (120 in. lbs.).

Fig 4: Tire And Wheel Mounting
Courtesy of CHRYSLER LLC
Install tire and wheel assembly (1). Refer to Tires and Wheels - Installation . Install and tighten wheel mounting nuts (3) to 135 N.m (100 ft. lbs.).
Lower the vehicle.
