SENSOR, Speed, Input: Installation: Installation

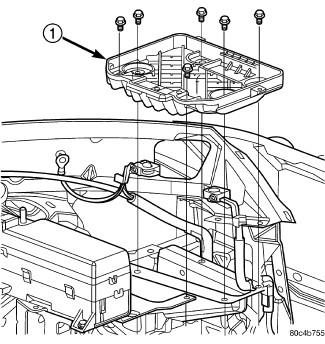

Fig 1: Battery Tray Removal/Installation

Courtesy of CHRYSLER LLC

CAUTION: When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.

1. Verify o-ring is installed into position.
2. Install and tighten input speed sensor to 27 N.m (20 ft. lbs.).
3. Connect speed sensor connector.
4. Install the battery tray (1) .

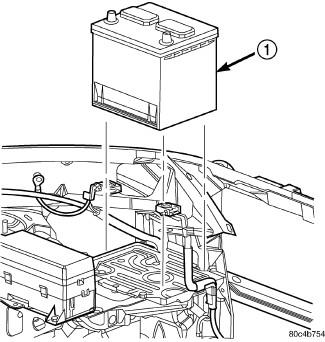

   Fig 2: Battery Removal/Installation

   Courtesy of CHRYSLER LLC

   1 - BATTERY

5. Install the battery (1) and hold down clamp .

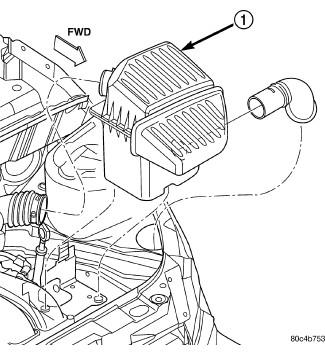

   Fig 3: Air Cleaner Assembly Removal/Installation

   Courtesy of CHRYSLER LLC

   1 - AIR CLEANER ASSEMBLY

6. Install air cleaner assembly (1) .
7. Connect battery cables.
