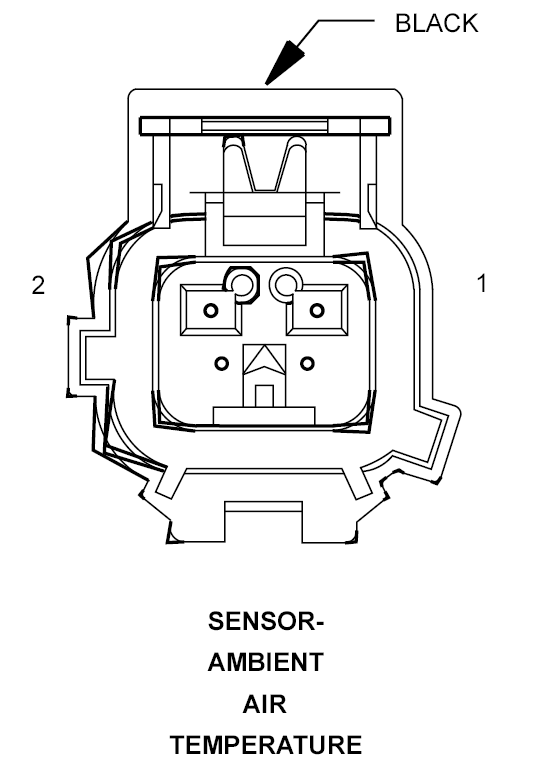

Ambient Air Temperature Sensor Connector End View
SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G31 20VT/LG
AAT SIGNAL
2
G931 20VT/BR
AAT RETURN
Courtesy of CHRYSLER CORP.
