Battery Temperature Sensor (Diesel) Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Battery Temperature Sensor (Diesel) Connector End View

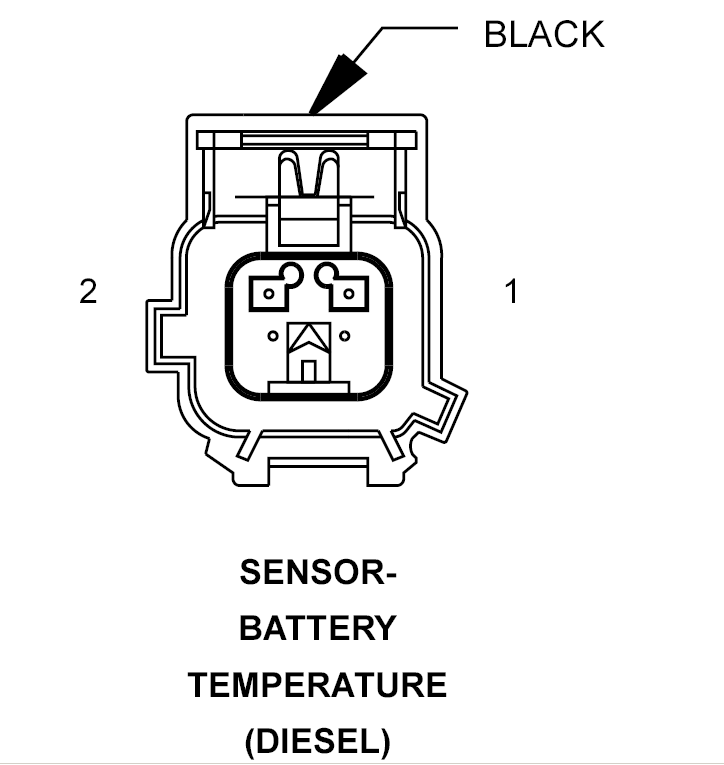

SENSOR-BATTERY TEMPERATURE - BLACK 2-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K25 20DB/VT
BATTERY TEMP SIGNAL
2
K91 20DB/YL
BATTERY TEMP RETURN
Courtesy of CHRYSLER CORP.
