Left Backup Lamp Connector End View

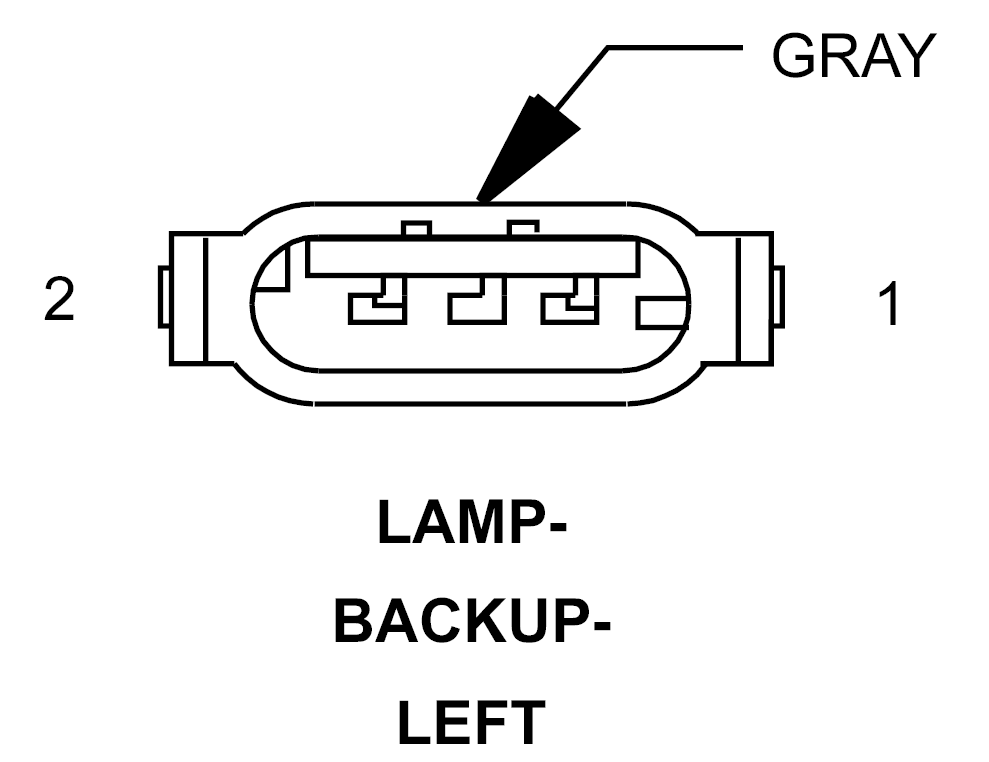

LAMP-BACKUP-LEFT - GRAY 2-WAY

GPT780150Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L1 20VT/BK BACKUP LAMP SWITCH OUTPUT
2 Z908 20BK GROUND
