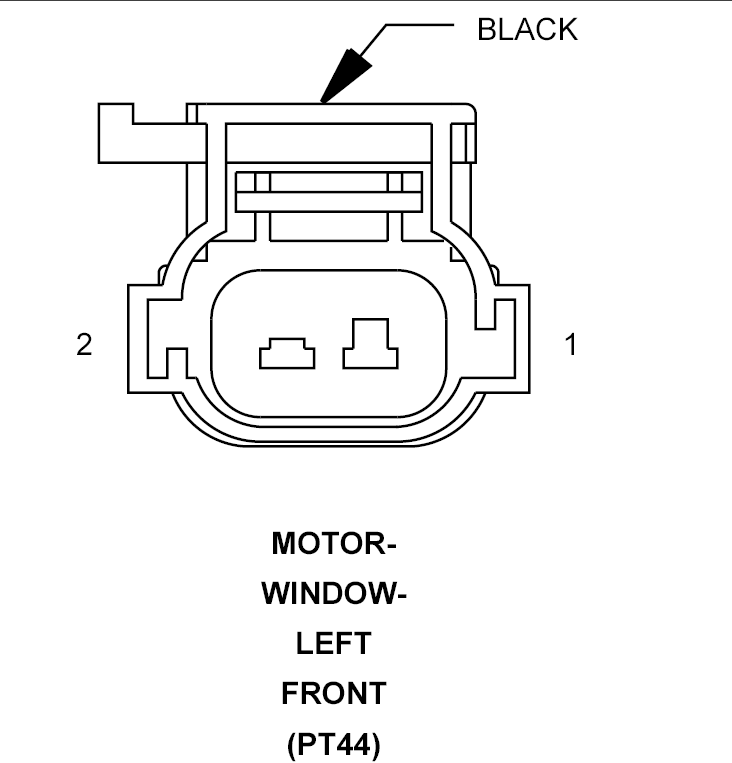

Left Front Window Motor (Hatchback) Connector End View
MOTOR-WINDOW-LEFT FRONT - BLACK 2-WAY (PT44)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q21 14OR/WT
LEFT FRONT WINDOW DRIVER (DOWN)
2
Q11 14OR/LG
LEFT FRONT WINDOW DRIVER (UP)
Courtesy of CHRYSLER CORP.
