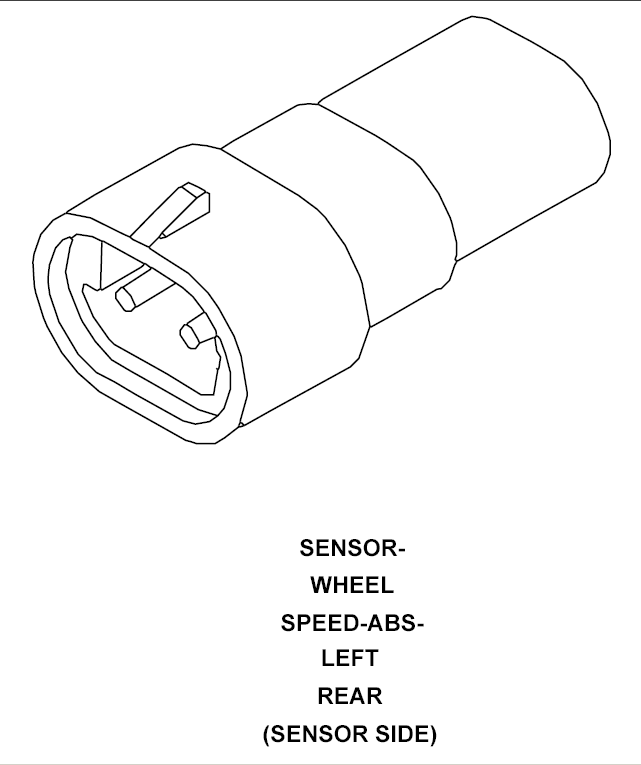

Left Rear Wheel Speed Sensor (Sensor Side) Connector End View
SENSOR-WHEEL SPEED-ABS-LEFT REAR - 2-WAY (SENSOR SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
LG |
LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
LG/DB |
LEFT REAR WHEEL SPEED SENSOR SIGNAL |
