SENSOR, Camshaft Position: Description: Description

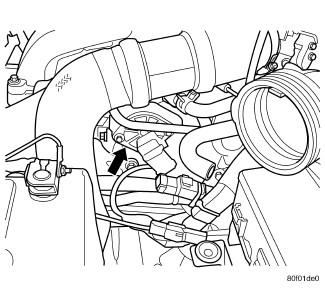

Fig 1: CAMSHAFT POSITION SENSOR - 2.4L TURBO
GC0114337Courtesy of CHRYSLER LLC

On 2.4L engines, the camshaft position sensor is mounted to the rear of the cylinder head.
