P0501-Vehicle Speed Sensor #1 Performance (Manual Trans): Notes

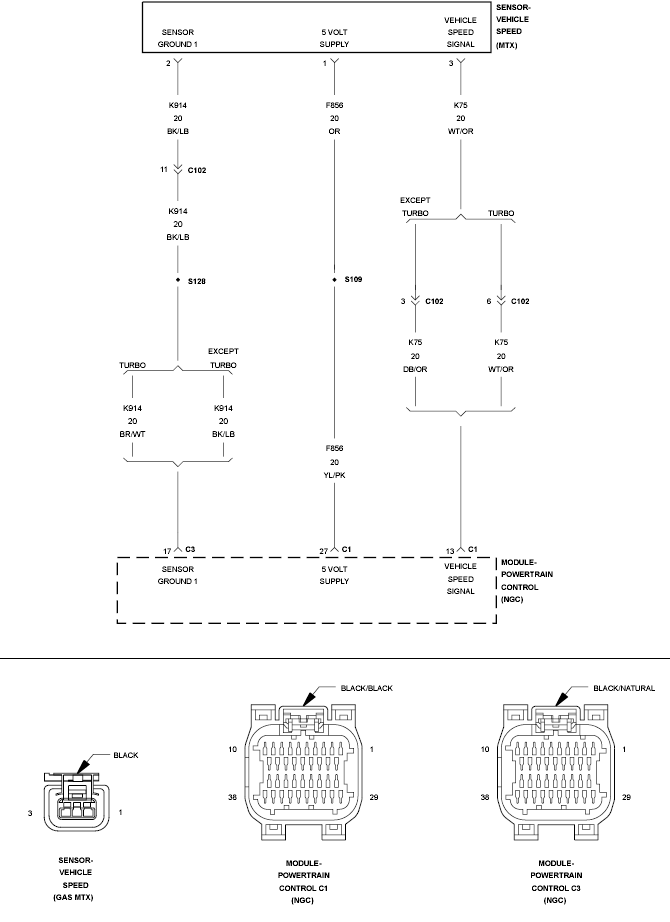

Fig 1: Vehicle Speed Sensor Circuit
GC0117273Courtesy of CHRYSLER LLC
