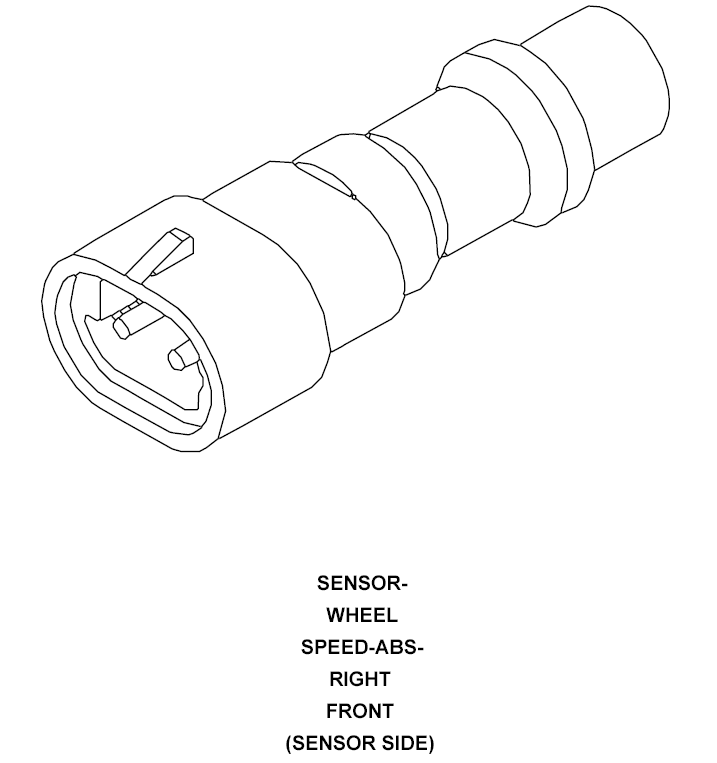

Right Front Wheel Speed Sensor (Sensor Side) Connector End View
SENSOR-WHEEL SPEED-ABS-RIGHT FRONT - 2-WAY (SENSOR SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
WT |
RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
WT/DB |
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL |
